Multi-function radiometry instrument
Product Overview

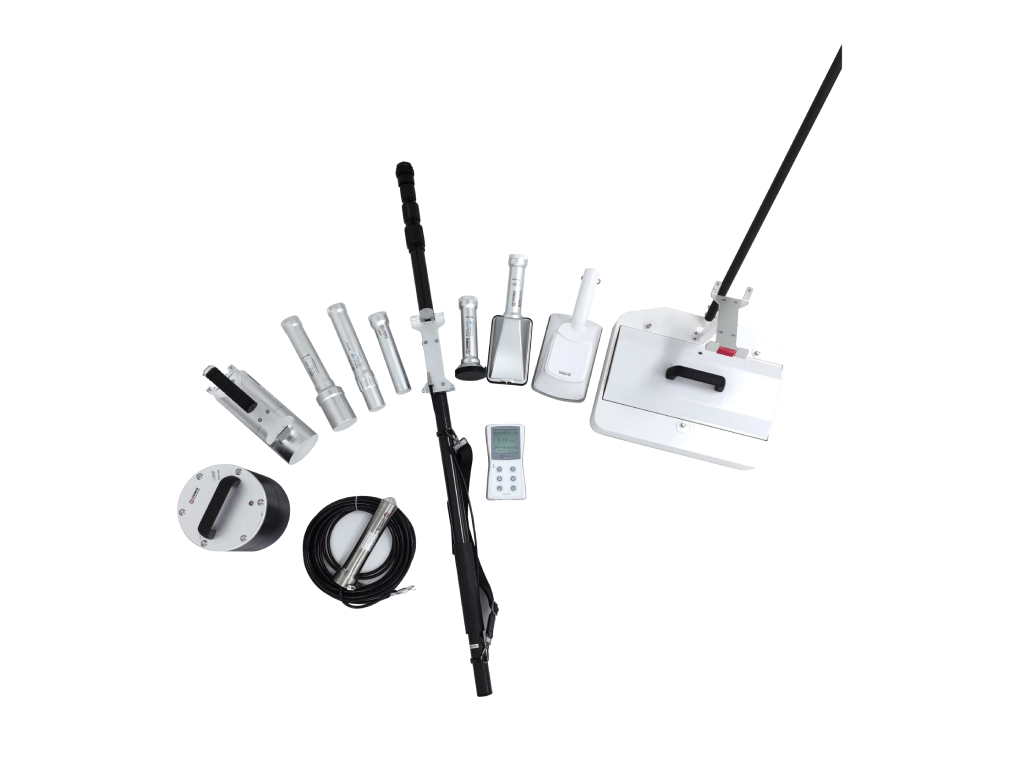

HA3200 multifunctional radiation measuring instrument is a multifunctional instrument that can be freely matched with a variety of detectors and is suitable for radiation measurement in complex and uncertain places. The main unit is combined with a variety of intelligent probes to measure the radioactivity levels of α, β, X, γ and neutrons. The main unit has a built-in G-M tube (energy compensation type) detector, which can be used independently or connected to different types of probes to meet the application needs of various occasions.
Features
① Multiple ray measurements: The host can be connected to and automatically identify external probes, covering multiple ray measurements;
② Small intelligent host: The host can be used with a detector or as an independent detector;
③ Multiple measurement modes: Four measurement modes: real-time, sampling, source search, and background, to meet different application needs;
④ Multiple alarm methods: With multiple alarm methods of over-threshold sound, light, and vibration, multiple protections for personnel safety;
⑤ Real-time positioning reporting: The equipment has a positioning function, and the measurement data is combined with the positioning information to facilitate data analysis (optional);
⑥ Radiation data networking: Patrol data supports wireless reporting to the supervision platform, which is convenient for information statistics and analysis management (optional).
Technical Parameters
|
Product Name |
Product Model |
Technical Parameters |
Product images |
|

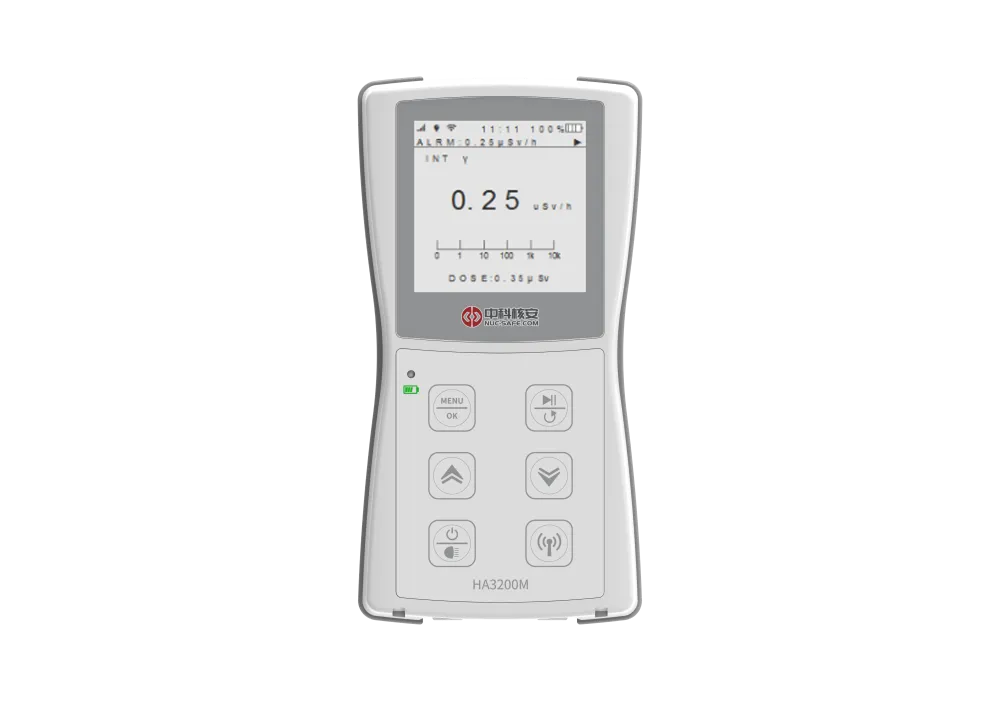

Multifunctional radiation measuring instrument host |
HA3200M |
Detector type: GM tube (energy compensation type) Measuring range: 0.01μSv/h~100mSv/h Relative inherent error: ±15% Energy range: 48keV~3MeV Battery life: ≥240h |
|
|

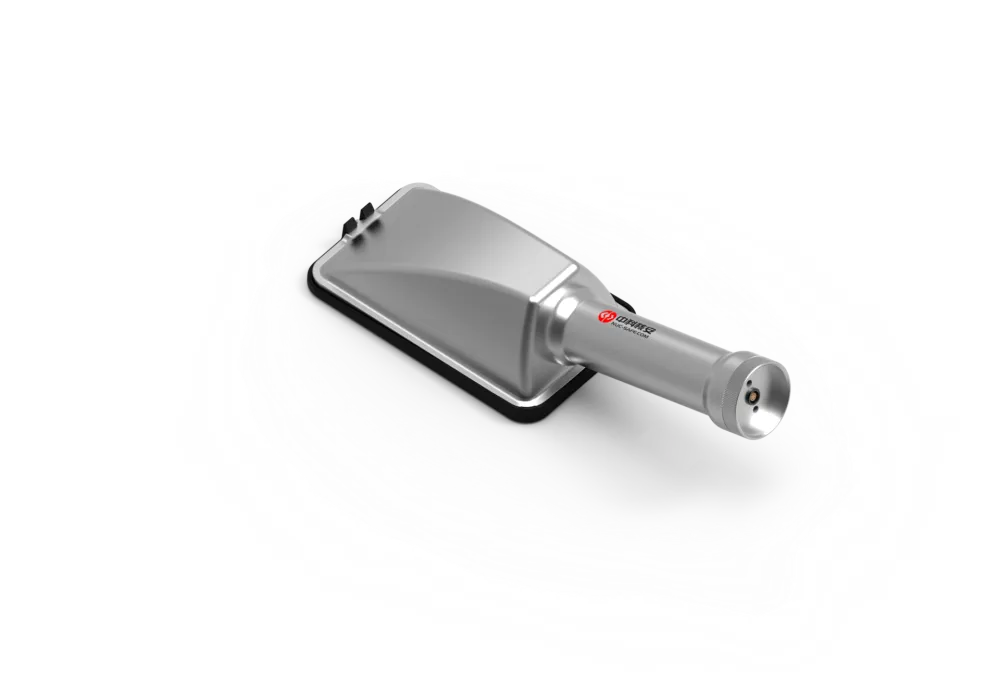

α, β surface contamination detector |
RP170 |
Detector type: Thin-layer plastic scintillator (ZnS(Ag)) Detector area: 170cm² Measuring range: 0~50000cps Background count: α≤0.1cps, β≤15cps Detection efficiency: 35% (241Am), 40% (90Sr-90Y) |
|
|
α, β surface contamination detector |
RP5000 |
Detector type: Thin-layer plastic scintillator (ZnS(Ag)) Detector area: 100cm² Measuring range: 0~50000cps Background count: α≤0.1cps, β≤7cps Detection efficiency: 37% (241Am), 37% (90Sr-90Y) |
|
|
α, β surface contamination detector |
RP5002 |
Detector type: Thin-layer plastic scintillator (ZnS(Ag)) Detector area: 20cm² Measuring range: 0~50000cps Background count: α≤0.1cps, β≤3cps Detection efficiency: 37% (241Am), 37% (90Sr-90Y) |
|
|
α, β surface contamination detector |
RP5007 |
Detector type: Thin-layer plastic scintillator (ZnS(Ag)) Detector area: 500cm² Measuring range: 0~50000cps Detection efficiency: 15% (241Am), 24% (90Sr-90Y) |
|
|
Wide range X-ray and gamma radiation detectors |
RP1003 |
Detector type: Dual GM tube (energy compensation type) Measuring range: 0.01μSv/h~10Sv/h Energy range: 48keV~3MeV |
|
|
Wide range X-ray and gamma radiation detector (underwater) |
RP1004 |
Detector type: Dual GM tube (energy compensation type) Measuring range: 0.01μSv/h~10Sv/h Energy range: 48keV~3MeV Underwater distance: 10m |
|
|
Highly sensitive X-ray and gamma radiation detectors |
RP2002 |
Detector type: 2-inch NaI (Tl) crystal Measuring range: 0.01μSv/h~100μSv/h Energy range: 60keV~3MeV |
|
|
Environmental X-ray and gamma radiation detectors |
RP2003 |
Detector type: 1 inch NaI (Tl) crystal Measuring range: 0.01μSv/h~200μSv/h Energy range: 60keV~3MeV |
|
|
Environmental grade X-ray and gamma radiation detectors |
RP9003 |
Detector Type: 3-inch plastic scintillator Measuring range: 1nSv/h~200μSv/h Energy range: 48keV~3MeV |
|
|
Neutron Radiation Detector |
RP4005 |
Detector type: 3He proportional counter tube Measuring range: 100nSv/h~100mSv/h Energy range: 0.025eV (thermal neutron) ~ 14MeV |
 |
