Multi-Function Radiation Survey Meter
Product Overview

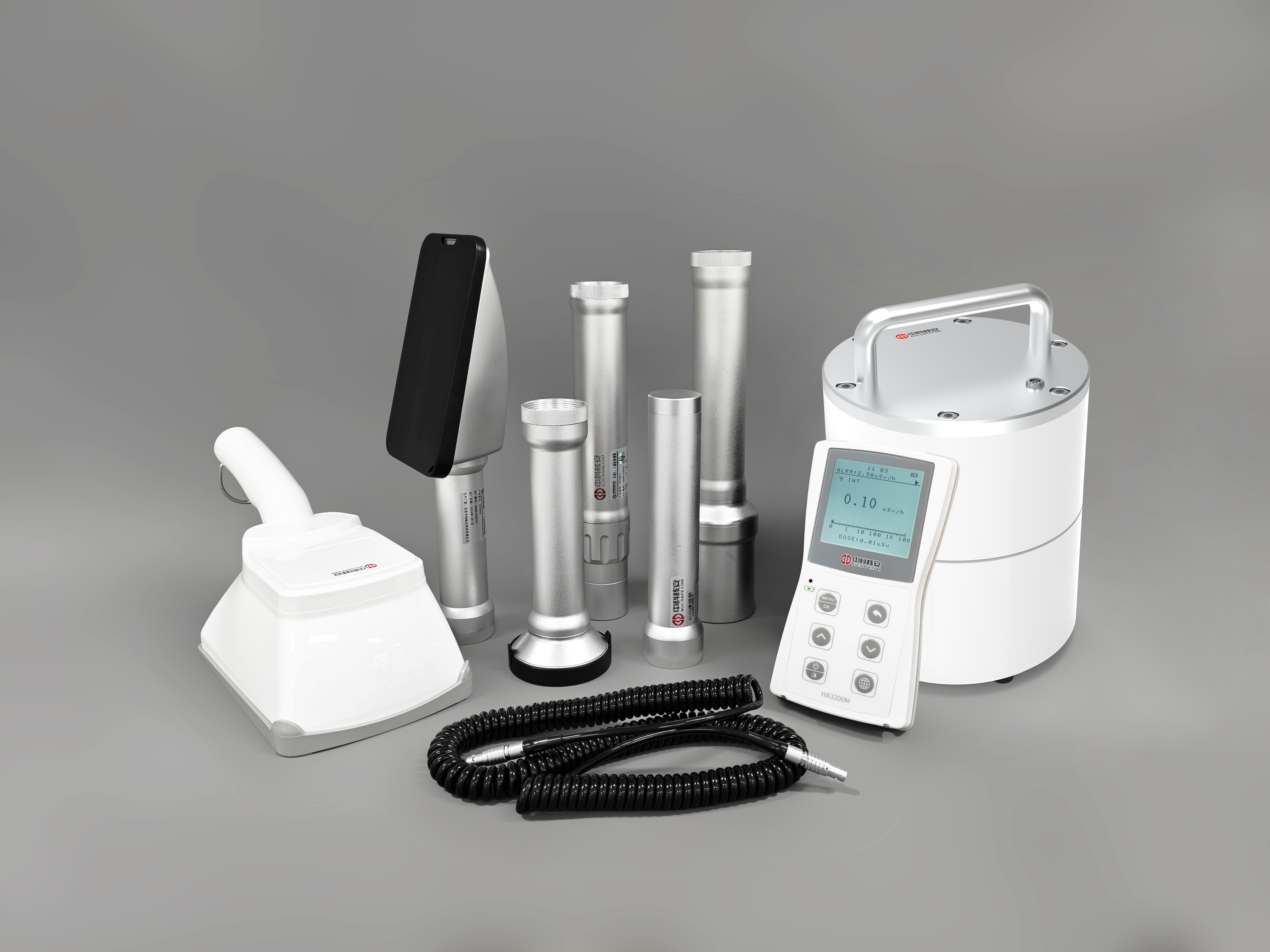

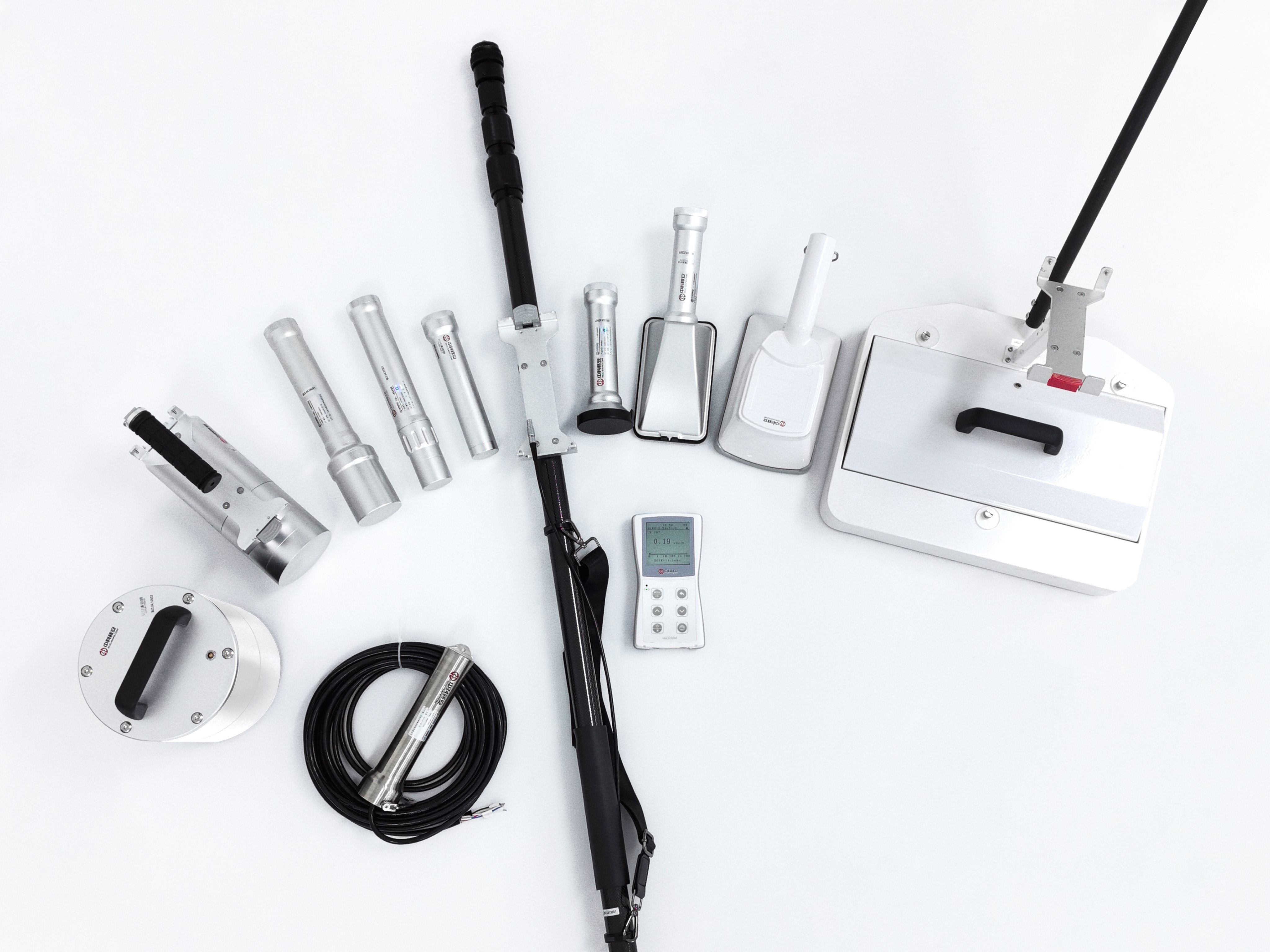

The HA3200 Multi-Function Radiation Survey Meter is a versatile instrument compatible with a wide range of detectors, designed for radiation measurements in complex and variable environments. When paired with various interchangeable probes, the main unit can measure α, β, X, γ, and neutron radiation levels. The main unit features a built-in energy-compensated G-M detector and can operate independently or connect to different external probes to meet diverse application requirements.
Applications
This series supports flexible detector configurations for multi-scenario use. It is widely used in radiation health supervision, environmental protection enforcement, customs inspection, public security screening, radiation emergency monitoring, nuclear power plant environmental inspection, environmental monitoring and assessment, and other sites involving radioactive materials.
Features
- Multi-Ray Measurement: The main unit supports automatic recognition of external probes, covering multiple radiation types.
- Compact Smart Main Unit: Works with detectors or as a standalone monitor.
- Multiple Measurement Modes: Real-time, timed sampling, source search, and background modes for various applications.
- Multi-Mode Alarm: Audible, visual, and vibration alarms for over-threshold conditions to ensure personnel safety.
- Real-Time Positioning & Reporting: Built-in GPS positioning function (optional) integrates measurement and location data for analysis.
- Radiation Data Networking: Survey data can be uploaded wirelessly to a supervision platform (optional) for statistics, analysis, and management.
Technical Specifications
|
Product Name |
Model |
Technical Specifications |
Picture |
|

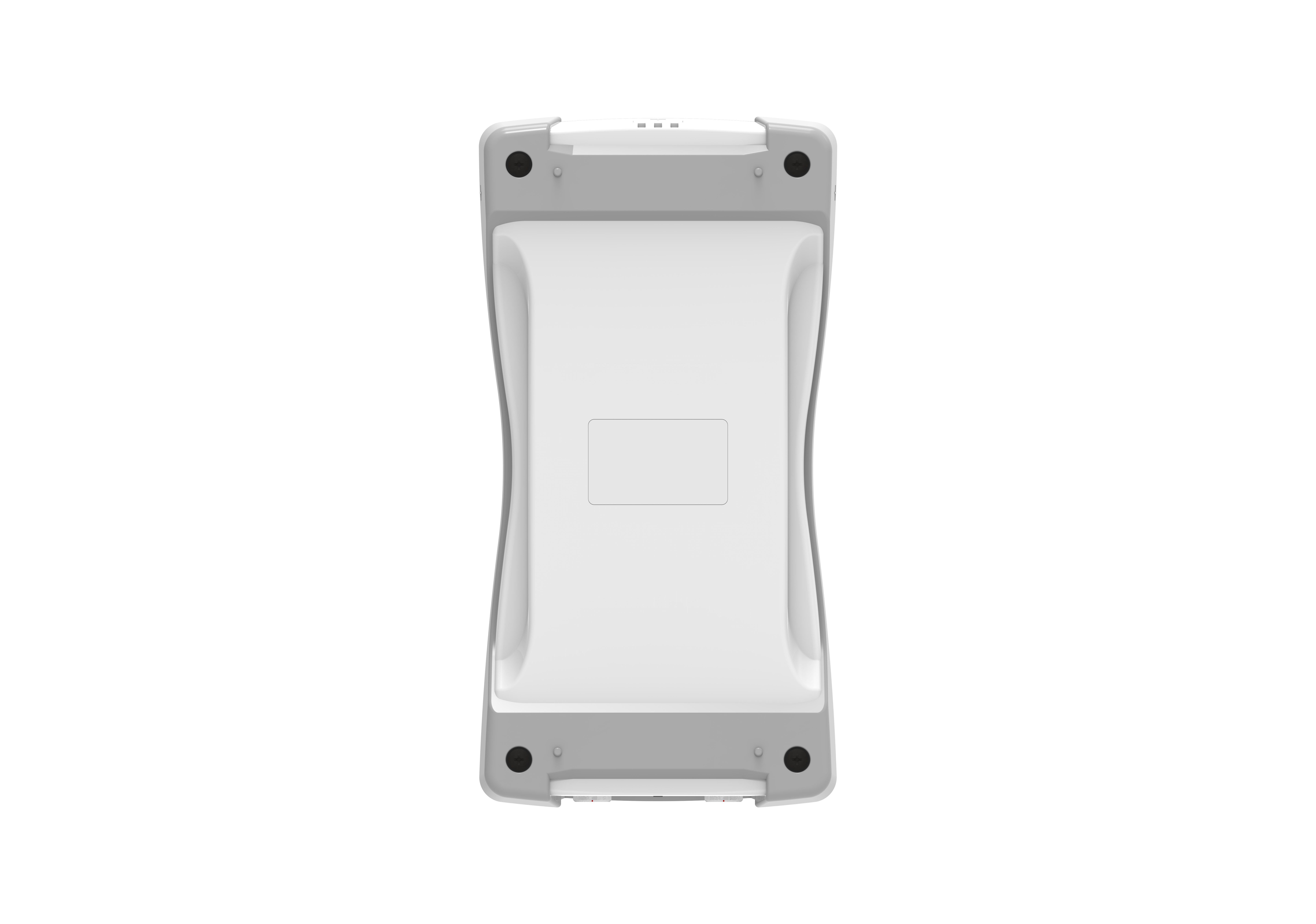

Multi-Function Radiation Survey Meter (Main Unit) |
HA3200M |
Detector: Energy-compensated G-M tube Measurement range: 0.01 μSv/h ~ 100 mSv/h Relative intrinsic error: ±15% Energy range: 48 keV ~ 3 MeV Battery life: ≥ 240 h |
|
|
α/β Surface Contamination Detector |
RP170 |
Detector: Thin plastic scintillator (ZnS(Ag)) Area: 170 cm² Range: 0 ~ 100000 cps Background: α ≤ 0.1 cps, β ≤ 15 cps Efficiency: 35% (²⁴¹Am), 40% (⁹⁰Sr ⁹⁰Y) |
|
|
α/β Surface Contamination Detector |
RP5000 |
Detector: Thin plastic scintillator (ZnS(Ag)) Area: 100 cm² Range: 0 ~ 100000 cps Background: α ≤ 0.1 cps, β ≤ 10 cps Efficiency: 37% (²⁴¹Am), 37% (⁹⁰Sr‑⁹⁰Y) |
|
|
α/β Surface Contamination Detector |
RP5002 |
Detector: Thin plastic scintillator (ZnS(Ag)) Area: 20 cm² Range: 0 ~ 100000 cps Background: α ≤ 0.1 cps, β ≤ 10 cps Efficiency: 37% (²⁴¹Am), 37% (²⁴¹Am) |
|
|
α/β Surface Contamination Detector |
RP5007B |
Detector: Thin plastic scintillator (ZnS(Ag)) Area: 7 cm² Range: 0 ~ 100000 cps Background: α ≤ 0.1 cps, β ≤ 10 cps Efficiency: 35% (²⁴¹Am), 40% (⁹⁰Sr ⁹⁰Y) |
|
|
α/β Surface Contamination Detector |
RP5500 |
Detector: Thin plastic scintillator (ZnS(Ag)) Area: 500 cm² Range: 0 ~ 100000 cps Efficiency: 15% (²⁴¹Am), 24% (⁹⁰Sr‑⁹⁰Y) |
|
|
Wide-Range X/γ Radiation Detector |
RP1003 |
Detector: Dual energy-compensated G-M tubes Range: 0.01 μSv/h ~ 10 Sv/h Energy range: 48 keV ~ 3 MeV |
|
|
Wide-Range Underwater X/γ Radiation Detector |
RP1004 |
Detector: Dual energy-compensated G-M tubes Range: 0.01 μSv/h ~ 10 Sv/h Energy range: 48 keV ~ 3 MeV Underwater depth: 10 m |
|
|
High-Sensitivity X/γ Radiation Detector |
RP2002 |
Detector: 2-inch NaI(Tl) crystal Range: 0.01 μSv/h ~ 100 μSv/h Energy range: 60 keV ~ 3 MeV |
|
|
Environmental X/γ Radiation Detector |
RP2003 |
Detector: 1-inch NaI(Tl) crystal Range: 0.01 μSv/h ~ 200 μSv/h Energy range: 60 keV ~ 3 MeV |
|
|
Environmental-Grade X/γ Radiation Detector |
RP9003 |
Detector: 3-inch plastic scintillator Range: 1 nSv/h ~ 200 μSv/h Energy range: 33 keV ~ 3 MeV |
|
|
Neutron Radiation Detector |
RP4005 |
Detector: ³He proportional counter Range: 100 nSv/h ~ 100 mSv/h Energy range: 0.025 eV (thermal neutron) ~ 14 MeV |
|
