Low-Background Alpha/Beta Counting System

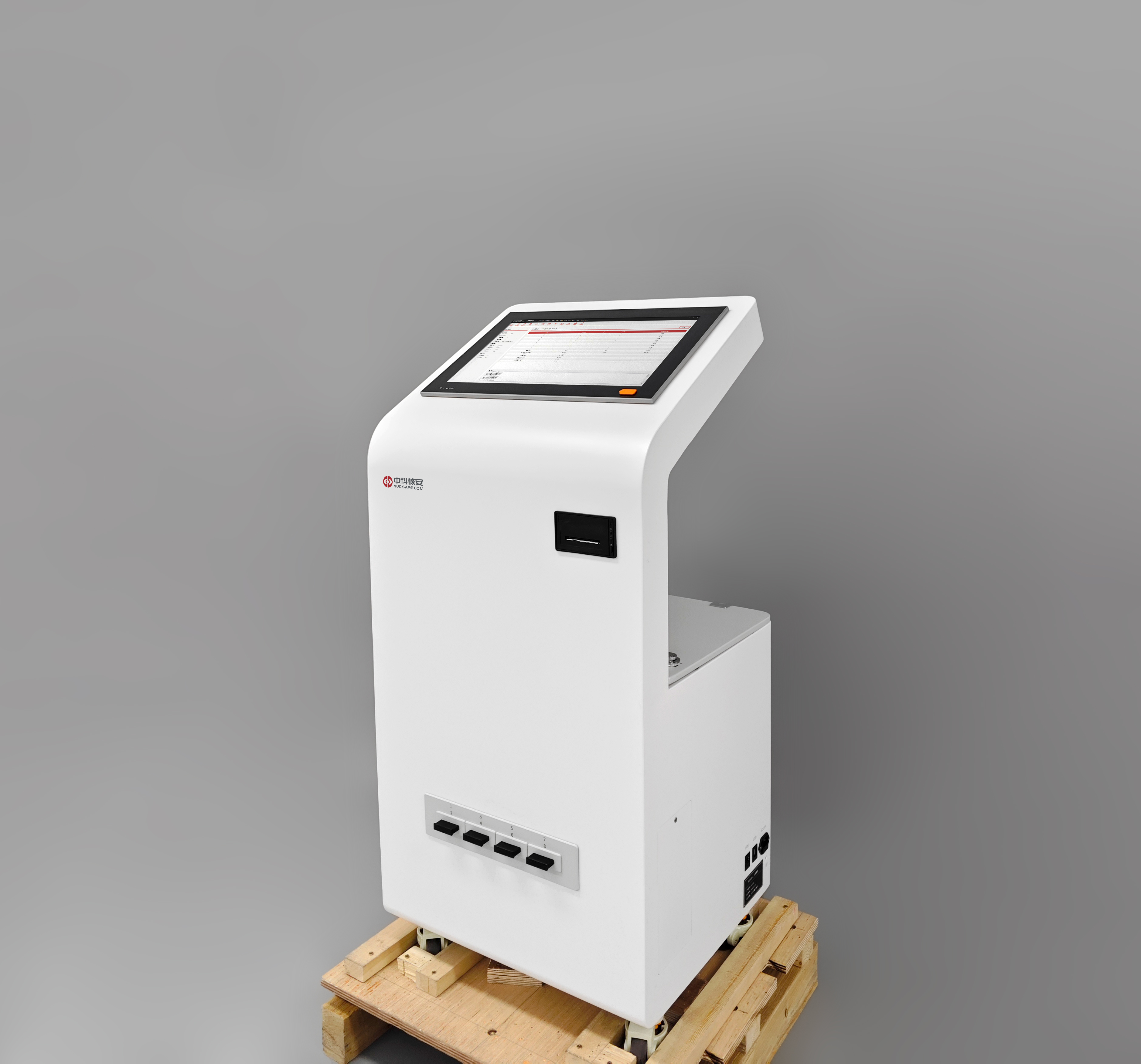

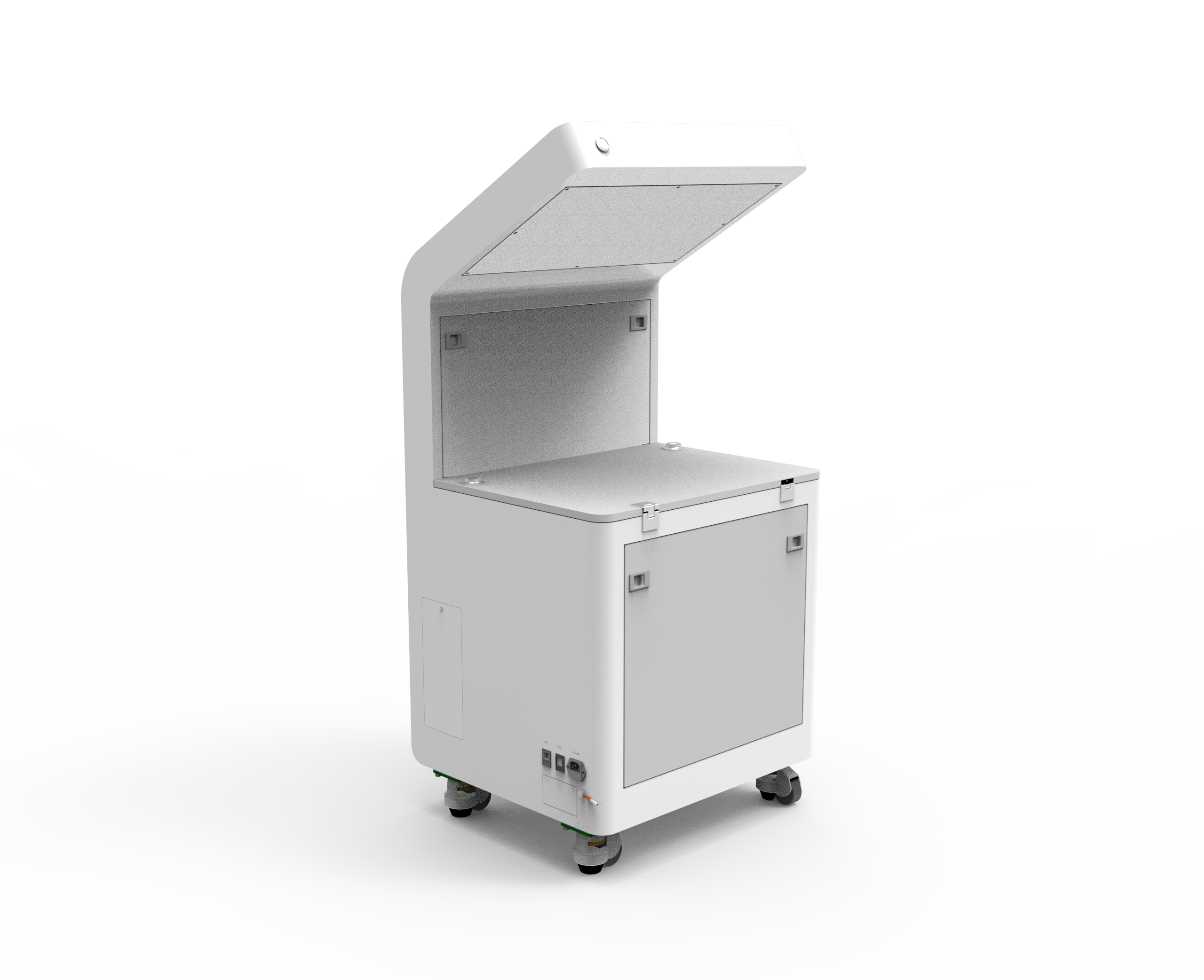

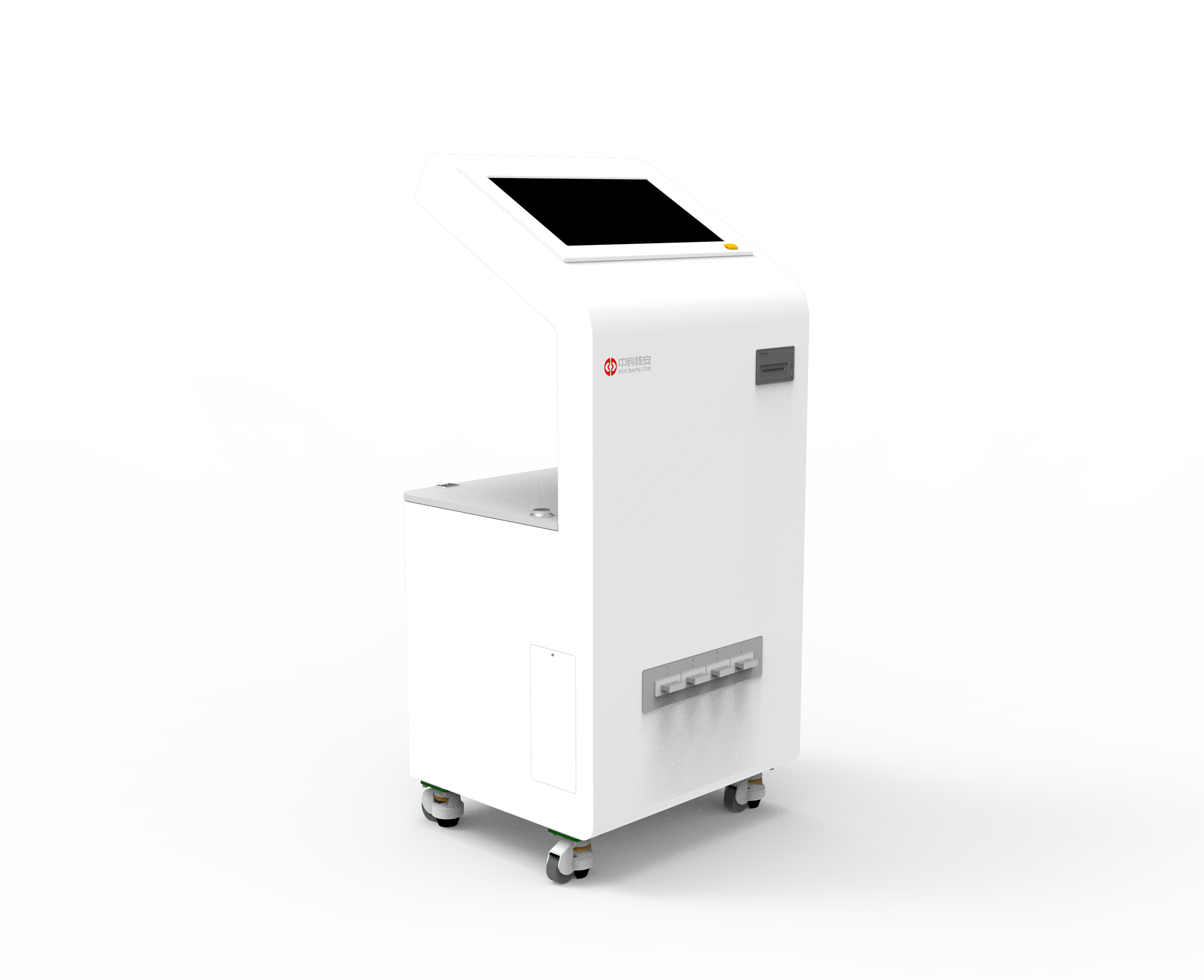

The HA4100 is an integrated, cabinet-style low-background counting system utilizing dual-scintillator detectors. Available in 1, 2, 4, 6, 8, and 10-channel configurations, each detection channel operates independently while allowing simultaneous measurement. It is designed for total alpha and beta activity concentration analysis in water, biological, environmental, and aerosol samples.
Add to inquiry
ꁆ ꁇ

Product Overview

The HA4100 is an integrated, cabinet-style low-background counting system utilizing dual-scintillator detectors. Available in 1, 2, 4, 6, 8, and 10-channel configurations, each detection channel operates independently while allowing simultaneous measurement. It is designed for total alpha and beta activity concentration analysis in water, biological, environmental, and aerosol samples.



Features

  • Low Maintenance:​ Dual-scintillator detectors are resistant to surface contamination and require no consumables, ensuring a long service life.
  • Superior Anti-coincidence:​ Anti-coincidence shielding efficiency > 99.9%, drastically reducing background counts.
  • Precision Control:​ High voltage and discriminator thresholds are software-programmable, ensuring high setting accuracy.
  • Automated Decay Correction:​ Automatically corrects activity for working and certified reference sources based on half-life.
  • High Mobility:​ Robust cabinet design with integrated casters for easy relocation and space-saving storage.
  • Auto-Calculation:​ Automatically computes mean values, activity concentration, standard error, and MDA (Minimum Detectable Activity).
  • Secure Data Archiving:​ Automatically saves results with support for data retrieval and export.
  • On-Site Reporting:​ Equipped with a tablet PC and dot-matrix printer for real-time hardcopy output.
  • User-Friendly Interface:​ Native Chinese software interface for rapid parameter setup and real-time result display.



Technical Specifications

Product Model

HA4100

Alpha Background

≤ 0.0032 cm⁻²·min⁻¹

(Condition: ²³⁹Pu source, active area Φ25 mm, 2π efficiency ≥ 80%)

Beta Background

≤ 0.10 cm⁻²·min⁻¹

(Condition: ⁹⁰Sr-⁹⁰Y source, active area Φ25 mm, 2π efficiency ≥ 50%)

α/β Crosstalk Rejection

α spillover into β channel: ≤ 1% (²³⁹Pu)

β spillover into α channel: ≤ 0.1% (⁹⁰Sr-⁹⁰Y)

Efficiency Repeatability

α ≤ 2%; β ≤ 2.5%

Long-Term Stability

Efficiency drift ≤ 1% for both α and β (after 24 h continuous operation)

Background Stability

Background fluctuation within Nb ± 3σ over 24 h

(Nb = mean background count; σ = standard deviation)
