Product Overview

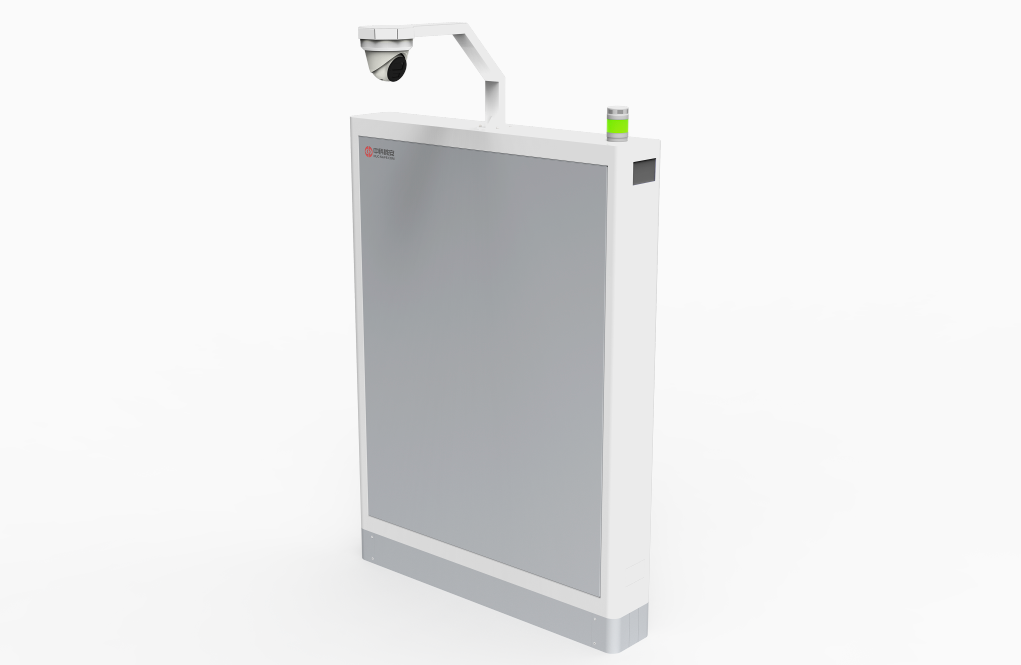

The CRMS1000 Portal Baggage Radiation Monitoring System is an automatic radiation inspection system equipped with high-sensitivity gamma detectors, nuclide identification detectors, and neutron detectors. It performs rapid, efficient, and non-destructive radiation screening for passing parcels, triggers linked alarms, and outputs alarm data. The system also supports networking with superior management platforms to build a remote real-time detection information system platform.

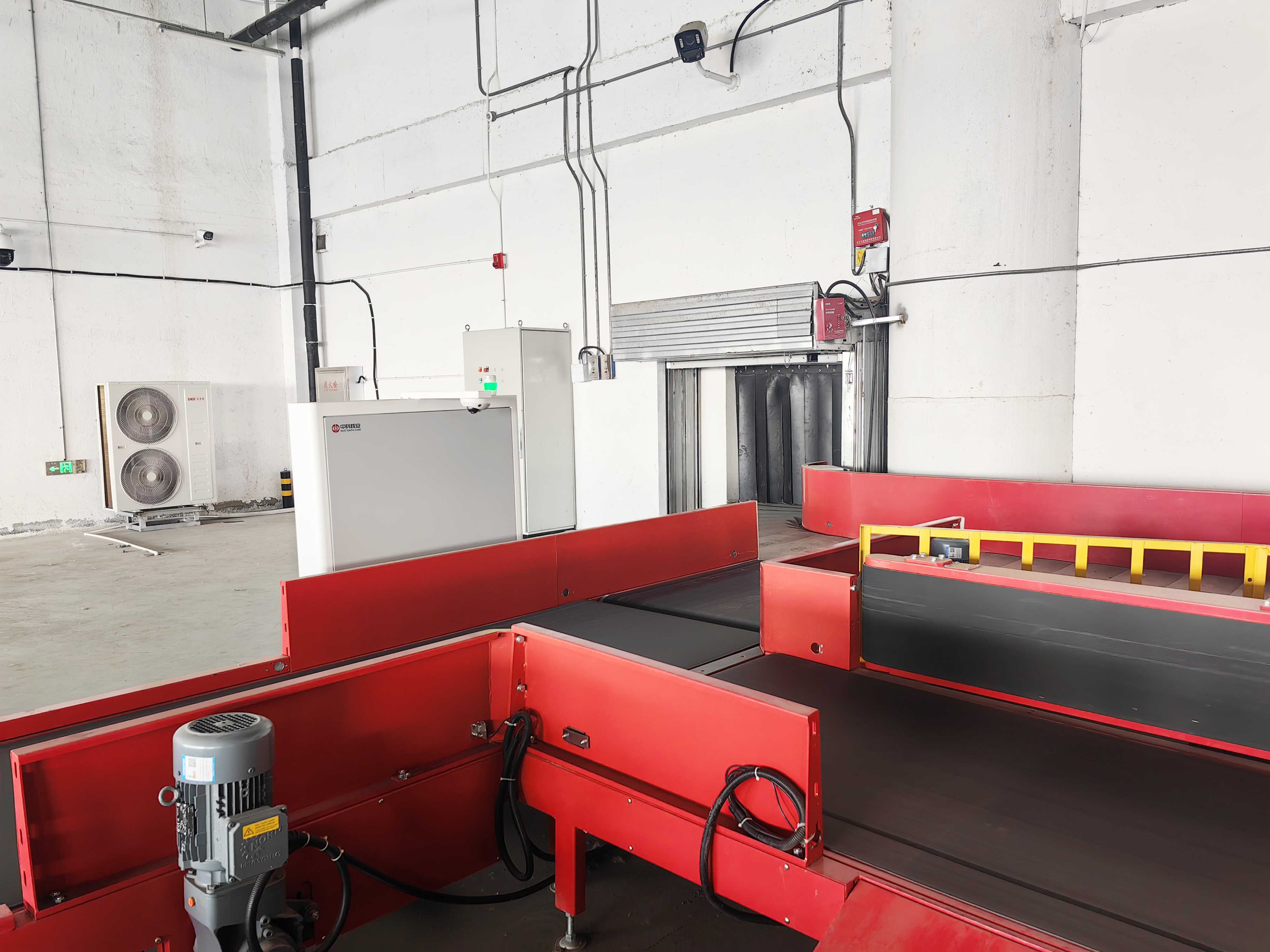

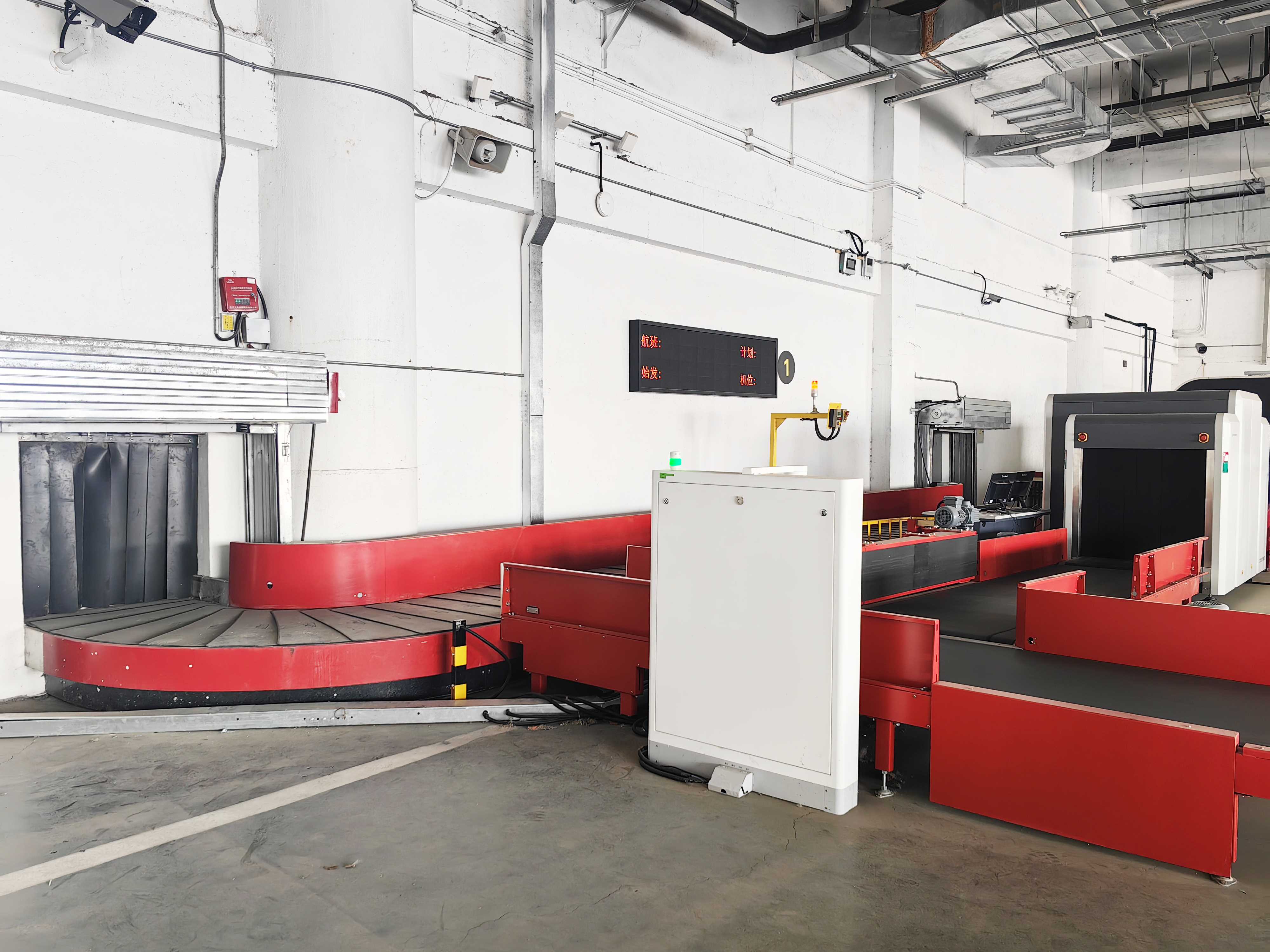

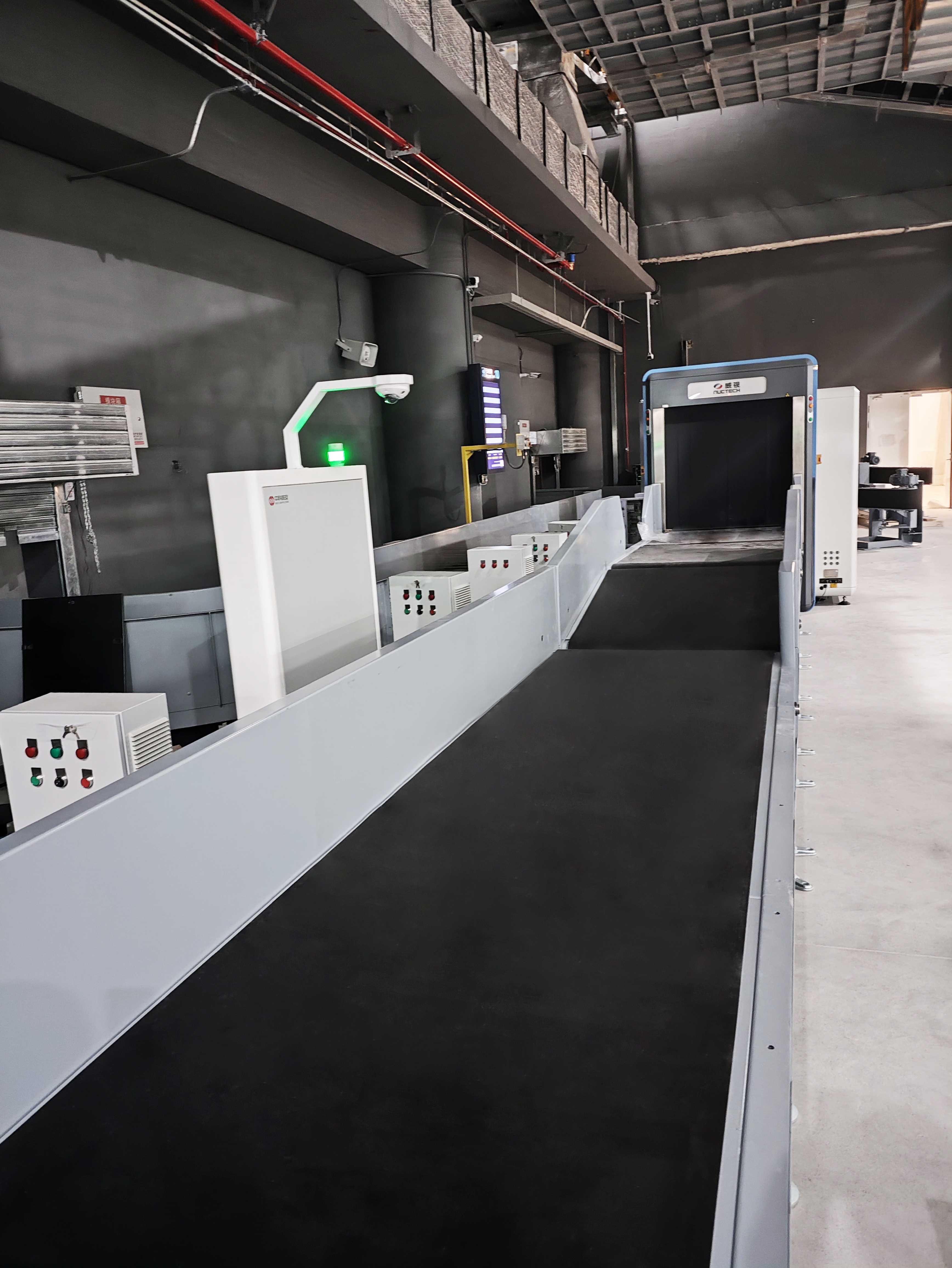

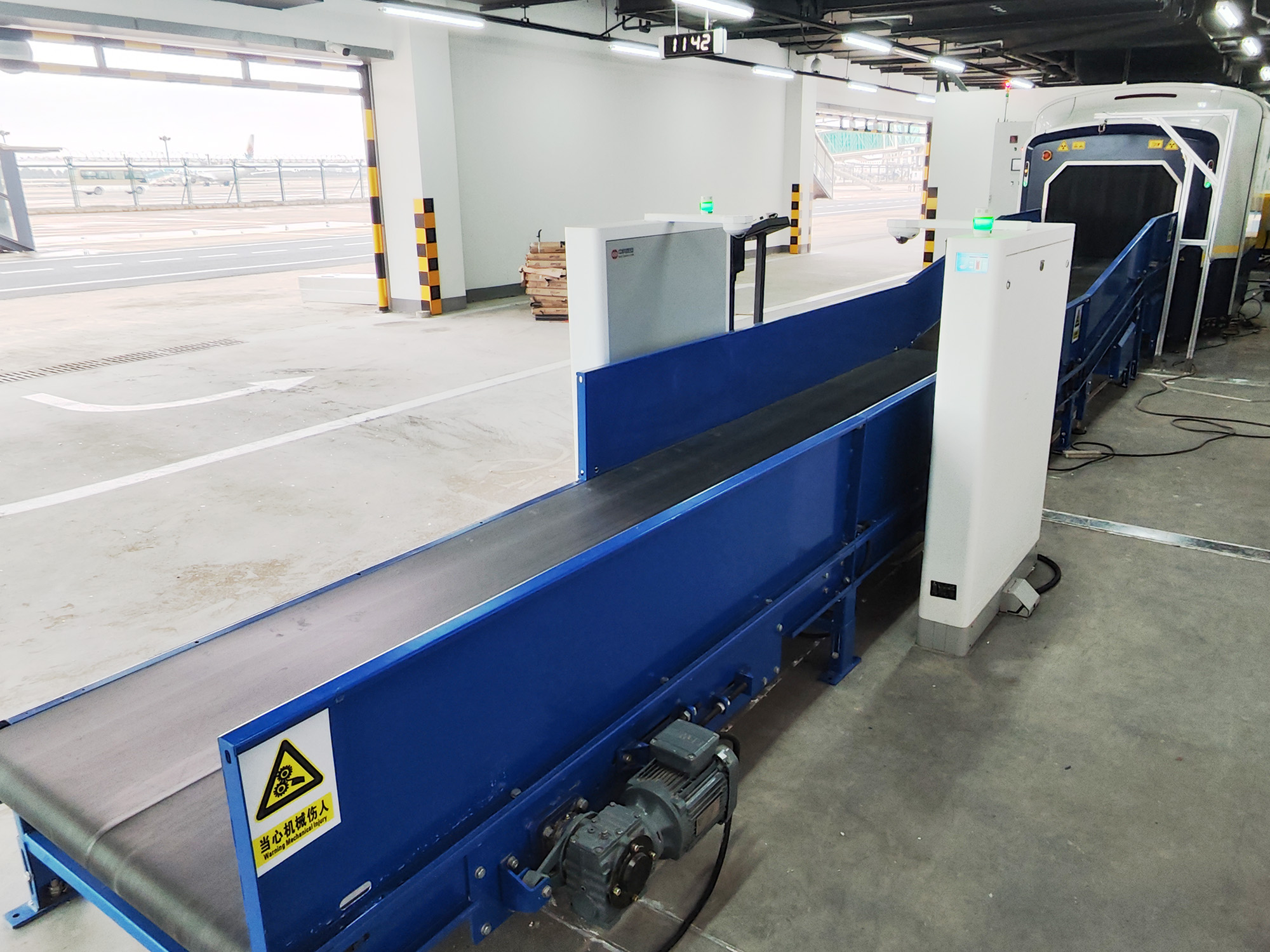

With high detection sensitivity and low false-alarm rate, the equipment is deployable at entry/exit baggage inspection channels of multiple venues, including airports, railway stations, ports, postal logistics hubs, and venues for large-scale events.

Features

• Real-time Video Capture: Continuous on-site monitoring with automatic snapshot; captures images of baggage entering the detection area.
• Multiple Alarm Modes: Local audible and visual alarms (high-brightness / high-decibel) effectively distinguish between system alarms and over-threshold alarms.
• Automatic Background Subtraction: Continuous background monitoring with automatic subtraction and update; update interval is configurable.
• Built-in Self-Diagnosis: Automatic fault detection with error messages to ensure equipment effectiveness.
• Convenient Operation: Integrated structure, modular design, standard interfaces, stable system performance, and user-friendly HMI.
• Anti-Interference Design: Lead shielding on non-detection surfaces eliminates external interference and ensures effective background shielding.

Technical Specifications

System Configuration
