Radioactive Liquid Waste Activity Monitoring System
Product Overview

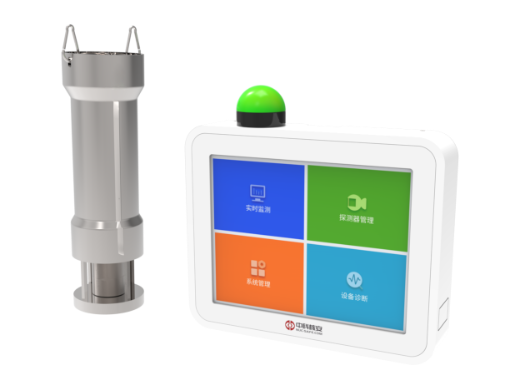

The HA1100-RW Radioactive Liquid Waste Activity Monitoring System consists of radiation monitors and liquid waste activity detectors. It features a one-host multi-probe architecture supporting multi-channel measurement, enabling online real-time activity monitoring for liquid waste in tanks and multiple decay tanks. The system automatically generates curves to visualize the decay trend. When the tank is full and the activity meets discharge standards, it automatically indicates the discharge-ready status and outputs interlock signals.
Measurement data is displayed and stored in real time. Monitoring data can be uploaded to multiple servers for multi-center monitoring, and historical data as well as operation logs can be exported at any time. The system is compliant with standard Modbus protocol and can be easily integrated into standard PLC control systems. It supports local and remote parameter configuration, displaying activity concentration and communication status in real time.
Technical Specifications
HA1100C Area Radiation Monitor
|
Product Model |
HA1100C |
|
Screen Size |
10 inches |
|
Display Units |
Gy/h, Sv/h, with automatic range switching |
|
Power Supply |
AC 220 V |
Liquid Waste Activity Detector
The RP6003 Liquid Waste Activity Detector consists of a detector and a stainless steel tank. It features a specialized waterproof design for normal operation at a depth of 5 meters underwater, with excellent corrosion resistance, high IP rating, and stable measurement performance.
Technical Specifications
|
Product Model |
RP6003 |
|
Detector Type |
NaI(Tl) + CsI crystal |
|
Radiation Type |
β, γ |
|
Measurement Unit |
Bq/L |
|
Energy Range |
48 keV ~ 3 MeV |
|
Measurement Range |
0.1 Bq/L ~ 3.7×10⁵ Bq/L |
|
Relative Intrinsic Error |
±15% |
|
Communication |
RS485 |
|
Power Supply |
DC 12 V |
|
IP Rating |
IP68 |
Liquid Waste Radiation Dose Detector
The RP6003-G Liquid Waste Radiation Dose Detector comprises a detector and a stainless steel tank. It delivers stable and reliable performance with compact size, facilitating integration and networking for system monitoring. Featuring waterproof and corrosion-resistant design, it works reliably at a depth of 5 meters underwater, with high corrosion resistance, high IP rating, and steady measurement. It monitors real-time radiation dose levels inside tanks.
Technical Specifications
|
Product Model |
RP6003-G |
|
Detector Type |
Energy-compensated G-M tube |
|
Radiation Type |
γ |
|
Measurement Unit |
μSv/h |
|
Energy Range |
48 keV ~ 3 MeV |
|
Measurement Range |
0.01 μSv/h ~ 100 mSv/h |
|
Relative Intrinsic Error |
±15% |
|
Communication |
RS485 |
|
Power Supply |
DC 12 ~ 24 V |
|
IP Rating |
IP68 |
